01 Acquire
The data gateway at your factory door
A full-stack industrial edge gateway that connects to PLCs and equipment over 42 industrial protocols, collects tag data, applies formula and scaling preprocessing, stores and visualizes locally, and streams upstream via a built-in OPC-UA server and MQTT/Sparkplug B. Collection, storage, time-series, dashboards, rules, and an AI copilot all fit in one container — and it runs standalone without the platform.
42
Industrial protocol drivers
A Capabilities · In depth

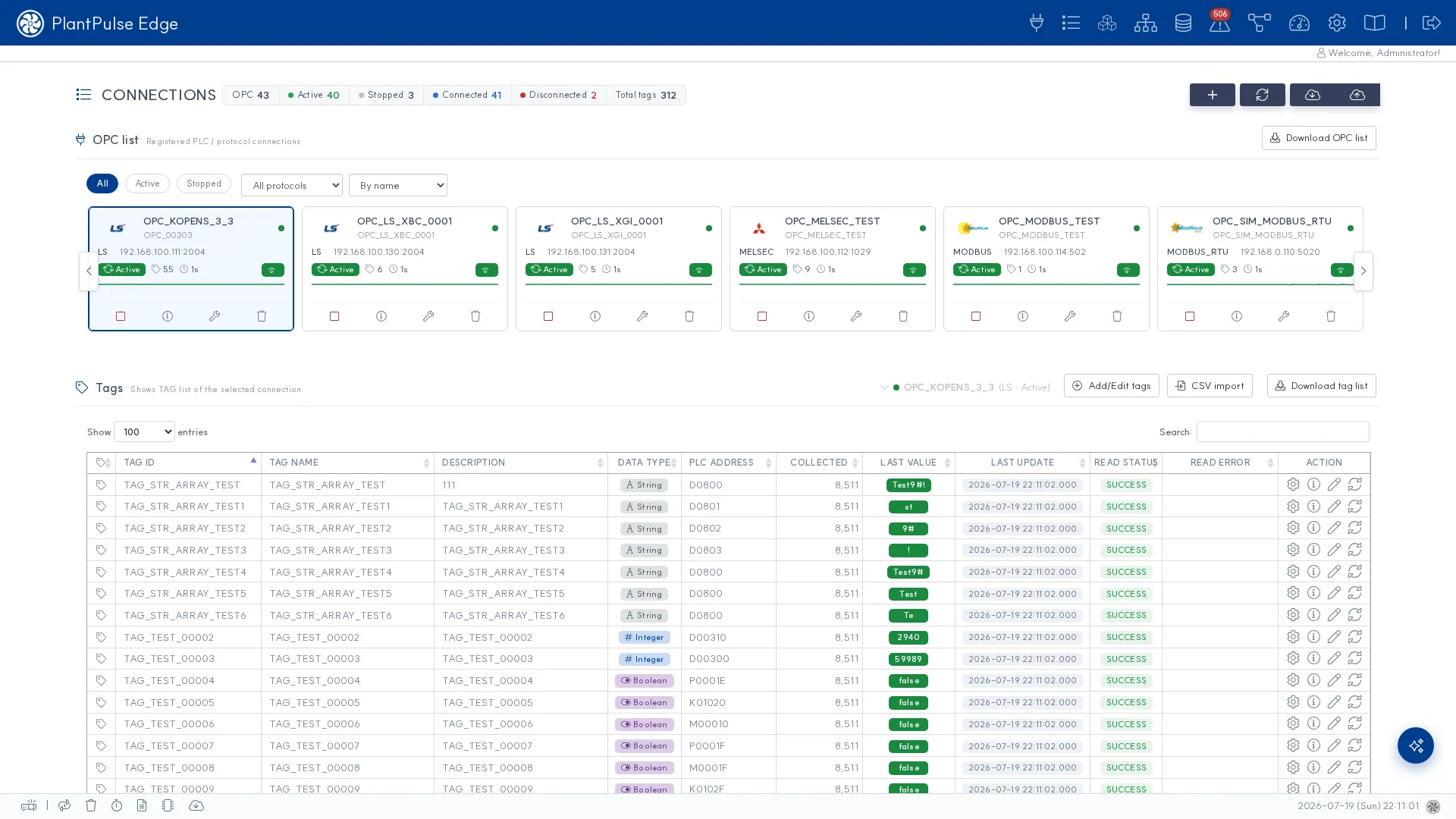

From Siemens S7/Profinet, Rockwell EtherNet/IP, Beckhoff ADS, and Omron FINS to Korean and Asian lines (LS ELECTRIC XGT, Mitsubishi MELSEC, Panasonic MEWTOCOL, Taiwan FATEK), Fanuc FOCAS (CNC), semiconductor SECS/GEM, and power DNP3/IEC 61850 — 42 drivers are built in. New equipment just needs a driver, and 25+ are CI-regression-tested with in-house PLC simulators.

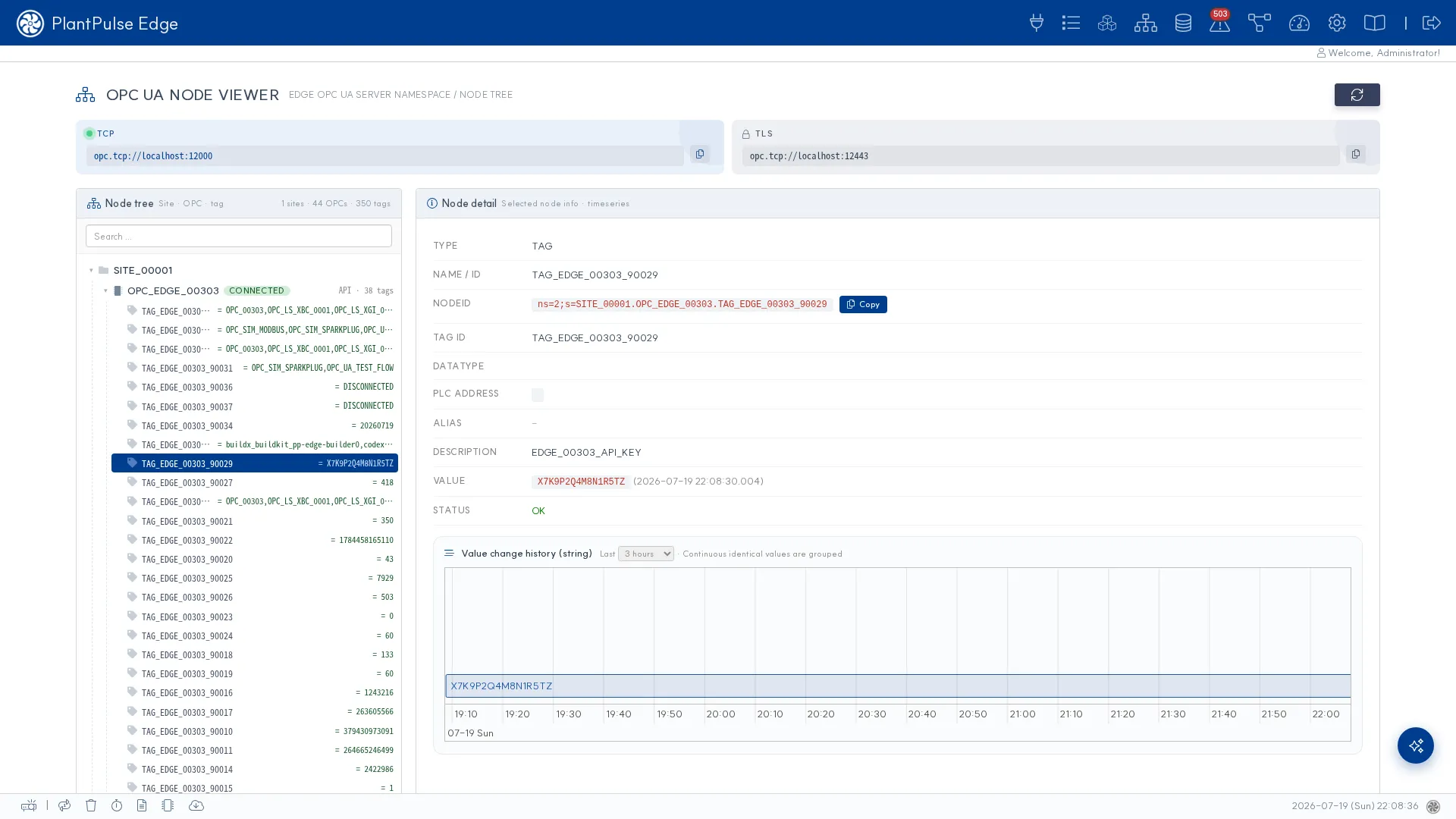

Every tag pulled in over 42 heterogeneous protocols is re-published through a built-in OPC-UA server. SCADA and HMIs consume a single OPC-UA standard without knowing the underlying protocols. Bidirectional writes are supported — writing to a server node forwards to the actual PLC.

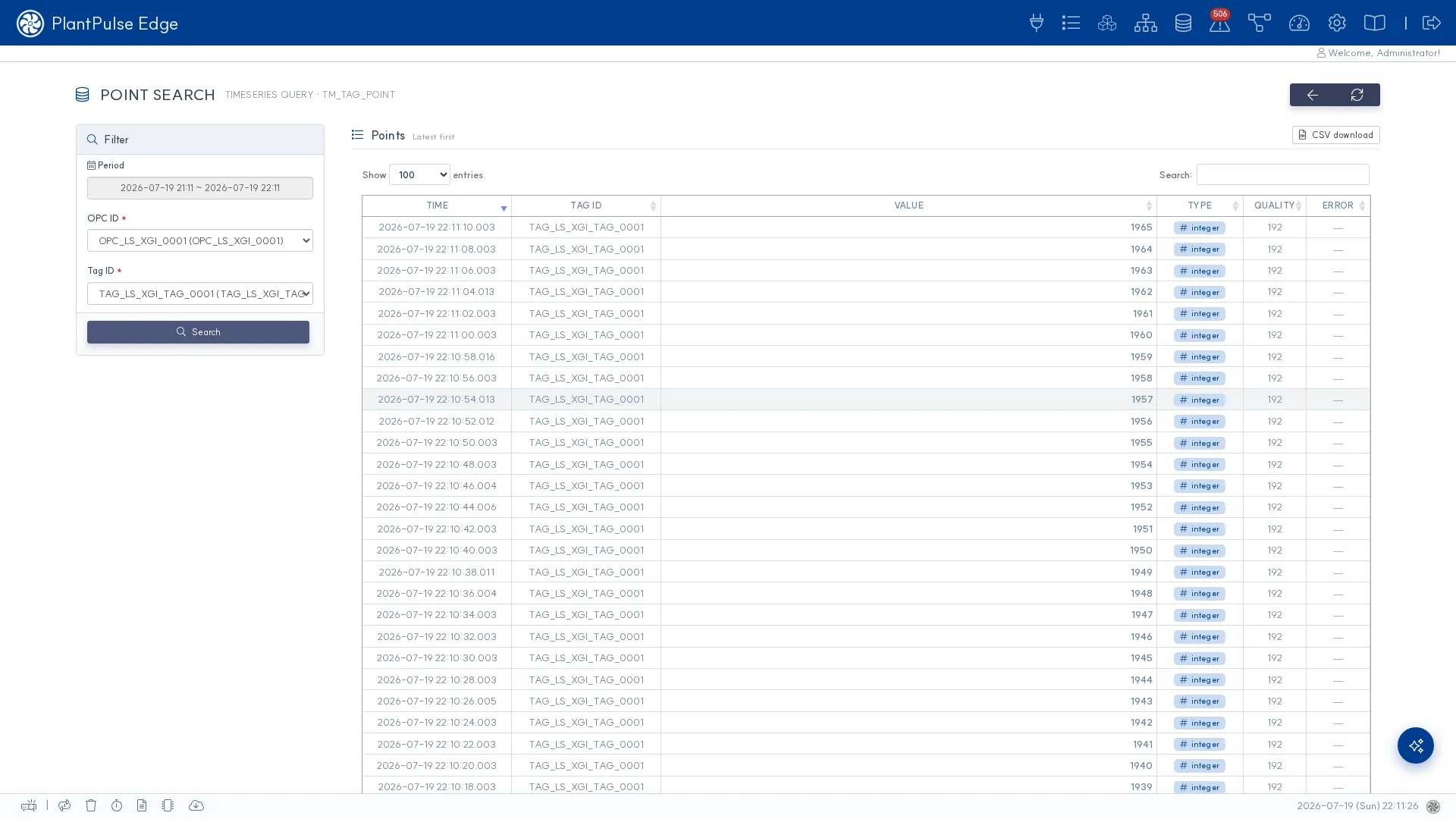

If the platform or a required channel drops, points queue locally up to 500,000 and drain automatically on recovery. Edge reconnects every 30 seconds and resyncs fully on recovery. With an event/time-series DB, in-memory cache, time-series engine, and dashboards built in, it collects, stores, and monitors on-site without the platform.

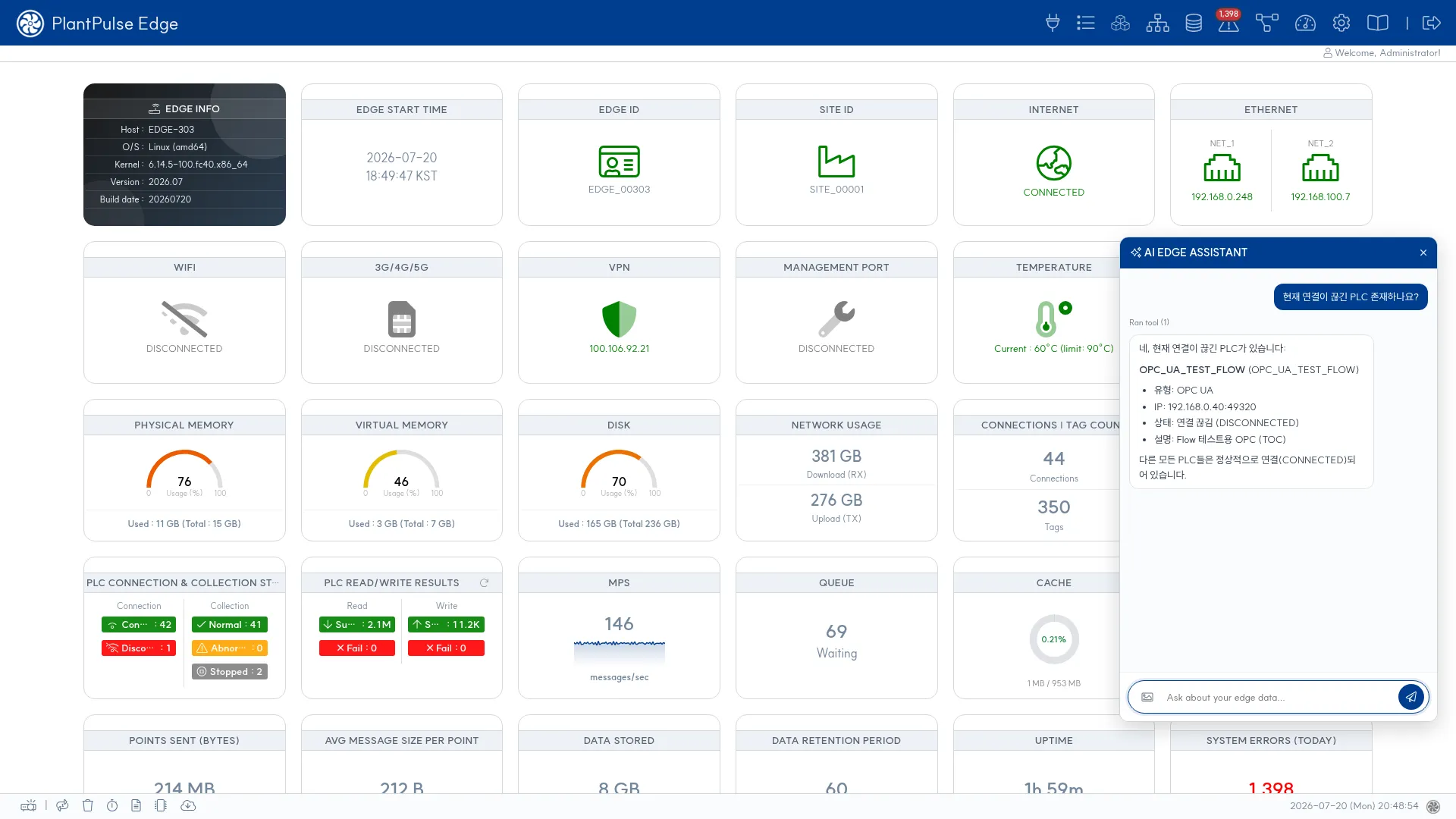

Ask about operations in natural language and control from the edge console. Read tools run automatically; control actions like starting/stopping OPC or writing tags are approval-gated and require human confirmation. Point it at a local LLM via an OpenAI-compatible API and data never leaves the site.

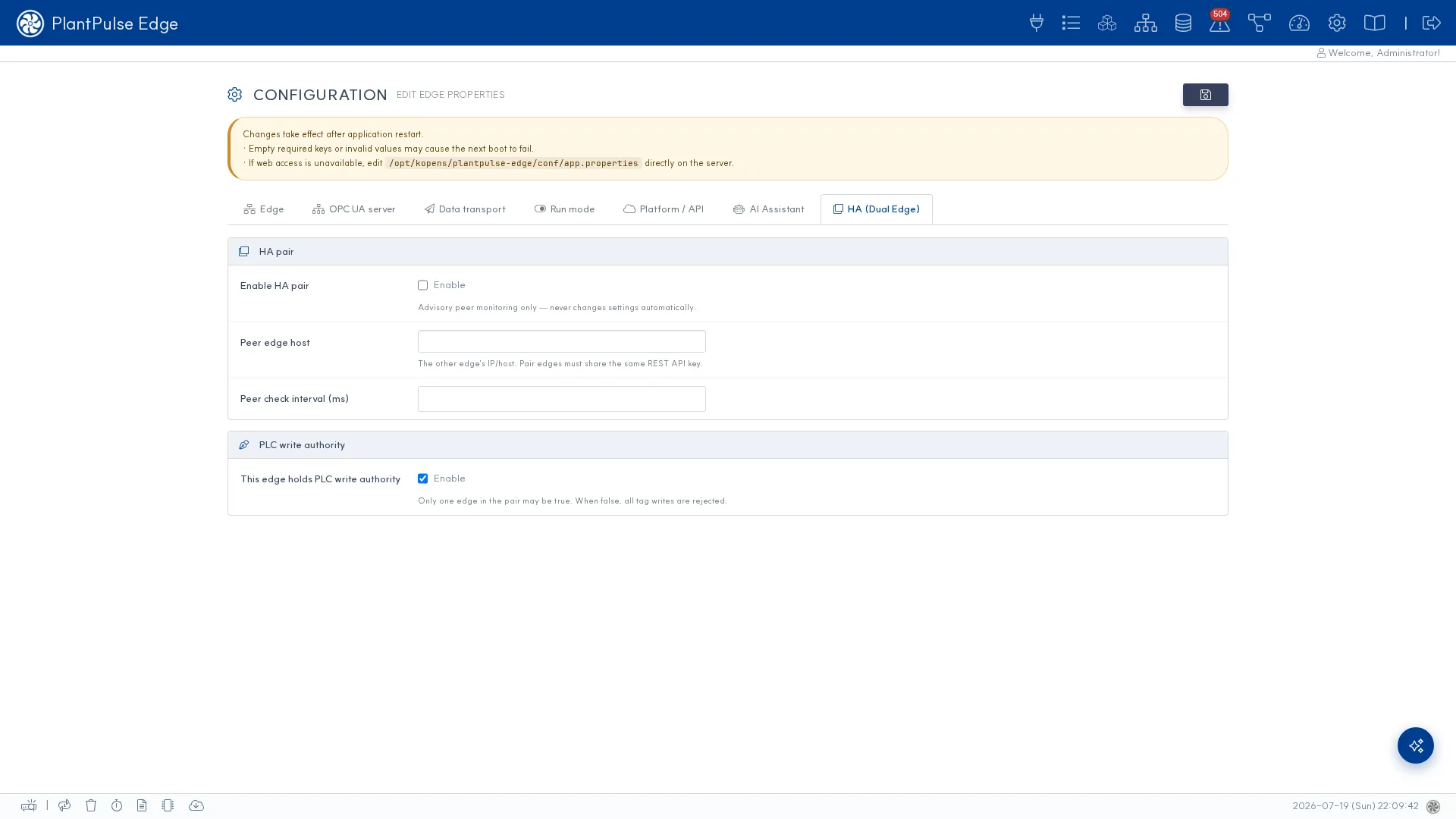

Connect two edges to a PLC's two Ethernet ports so both collect continuously, granting write authority to only one. If the writer stalls, the standby detects it via a PLC heartbeat and auto-promotes in about 8 seconds. Observation through the shared resource (PLC) makes it split-brain safe.
B Architecture
Collect from diverse field equipment over 42 protocols, apply formula evaluation and store-and-forward buffering, then standardize and stream upstream via a built-in OPC-UA server and MQTT/Sparkplug B. An on-edge AI copilot and HA failover fit in one box.
C Use Cases
Outcome
Unified collection · minimal integration development
Outcome
Standard equipment connection · high-frequency capture
Outcome
Full air-gapped operation · zero data exfiltration
E More Capabilities
Connect to virtually any equipment — S7, EtherNet/IP, MELSEC, LS, FINS, FOCAS, SECS/GEM, DNP3, IEC 61850.
Re-publish 42 protocols' tags as one OPC-UA standard. Bidirectional write, TLS, and auth supported.
Compose a Unified Namespace with a built-in MQTT broker and full-lifecycle Sparkplug B publishing.
500,000-point buffering, 30-second auto-reconnect, and platform-free STANDALONE operation.
Compute formula evaluation, unit conversion, deadband, and derived tags at collection time for better quality.
Approval-gated on-edge AI copilot, 8-second PLC-witness failover, end-to-end TLS, image signing, and air-gap.
F Technical Specifications
G Product Screens
D FAQ
42 drivers are built in — S7, EtherNet/IP, MELSEC, LS, FINS, ADS, FOCAS (CNC), SECS/GEM (semiconductor), DNP3, IEC 61850 (power) and more. Coverage extends broadly to Korean and Asian lines, and protocols not on the list can be added.
Yes. Every tag collected over 42 protocols is re-published through the built-in OPC-UA server, so SCADA and HMIs consume a single OPC-UA standard. You can also compose a Unified Namespace over MQTT and Sparkplug B.
Store-and-forward buffers up to 500,000 points locally and resends automatically on recovery, so nothing is lost. It reconnects every 30 seconds and resyncs fully on recovery.
Yes. Signed offline install bundles let you install and operate without internet, and the on-edge AI can point at a local LLM so data never leaves the site — ideal for security-first defense and power sites.
Connect two edges to a PLC's two ports for structural read HA, with automatic failover in about 8 seconds via a PLC witness. Observation through the shared resource makes it split-brain safe.
A 15-minute demo walks you from ingest to AI. Check the fit for your plant with an expert, right away.
